It’s no secret that marine electrical systems operate in some of the harshest environments imaginable. Even relatively mild vessels can benefit from improved wiring throughout the boat. However, in performance applications, like this 18’ jet boat, a properly constructed milspec wiring harness truly stands apart.
If you’re unfamiliar with the differences between milspec wiring and traditional automotive-style harness construction, we break that down in detail here.
Marine Electrical Systems vs. Automotive Environments
All boats experience significantly more moisture exposure than typical automotive applications. While a pontoon or cabin cruiser will encounter humidity and occasional spray, performance boats face a different level of environmental stress.
Some v-drives and jet boats are notoriously prone to heavy water intrusion over the transom when coming off throttle. Aggressive cornering or cutting across another boat’s wake can send water over the deck, and sometimes straight into your lap. In these situations, electrical components are exposed to:
- Direct water saturation
- Persistent humidity
- Rapid temperature swings
- Vibration and shock loading
Even without direct submersion, constant exposure to humid marine air accelerates oxidation and corrosion. Over time, this is what destroys marine electrical systems, not catastrophic failure, but gradual degradation.
Why Milspec Harness Construction Excels in Marine Applications
A properly built milspec marine wiring harness is designed specifically to combat these conditions.
Unlike traditional harness construction, milspec systems are largely sealed from environmental intrusion through:
- Environmentally sealed connectors
- Adhesive-lined heat shrink
- Molded heat shrink boots
- DR-25 heat shrink sheathing
This level of environmental protection dramatically reduces the opportunity for moisture intrusion and long-term corrosion.
The Advantage of Tefzel Wire in Performance Boats
True milspec harnesses utilize Tefzel (ETFE) insulated wire, the standard in:
- Aircraft
- Military applications
- Professional motorsports
Tefzel wire offers several performance advantages:
- Lightweight construction
- Tinned copper conductors
- ETFE-based high-temperature insulation
- Low coefficient of friction
- Superior abrasion resistance
Because of these properties, Tefzel allows for concentric twisting, a harness construction technique that:
- Produces the smallest possible cable diameter
- Improves flexibility
- Reduces trapped free oxygen between conductors
Reducing free oxygen minimizes oxidation potential. Oxidation and corrosion are the primary killers of marine electrical systems. Many electrical failures in boats can be traced back to oxidized switches, corroded terminals, or degraded conductors. By limiting environmental exposure and oxygen intrusion, milspec construction significantly reduces premature failures and troubleshooting headaches.
Temperature Rating and Abrasion Resistance
Performance marine engines generate substantial heat, especially in compact engine compartments. Milspec harnesses naturally offer improved temperature ratings thanks to:
- ETFE-insulated Tefzel wire
- Raychem DR-25 heat shrink sheathing
DR-25 provides exceptional resistance to:
- Abrasion
- Chemicals
- Fuel and oil exposure
- Heat cycling
This makes it ideal for high-performance jet boats, v-drives, and other power sport marine applications.

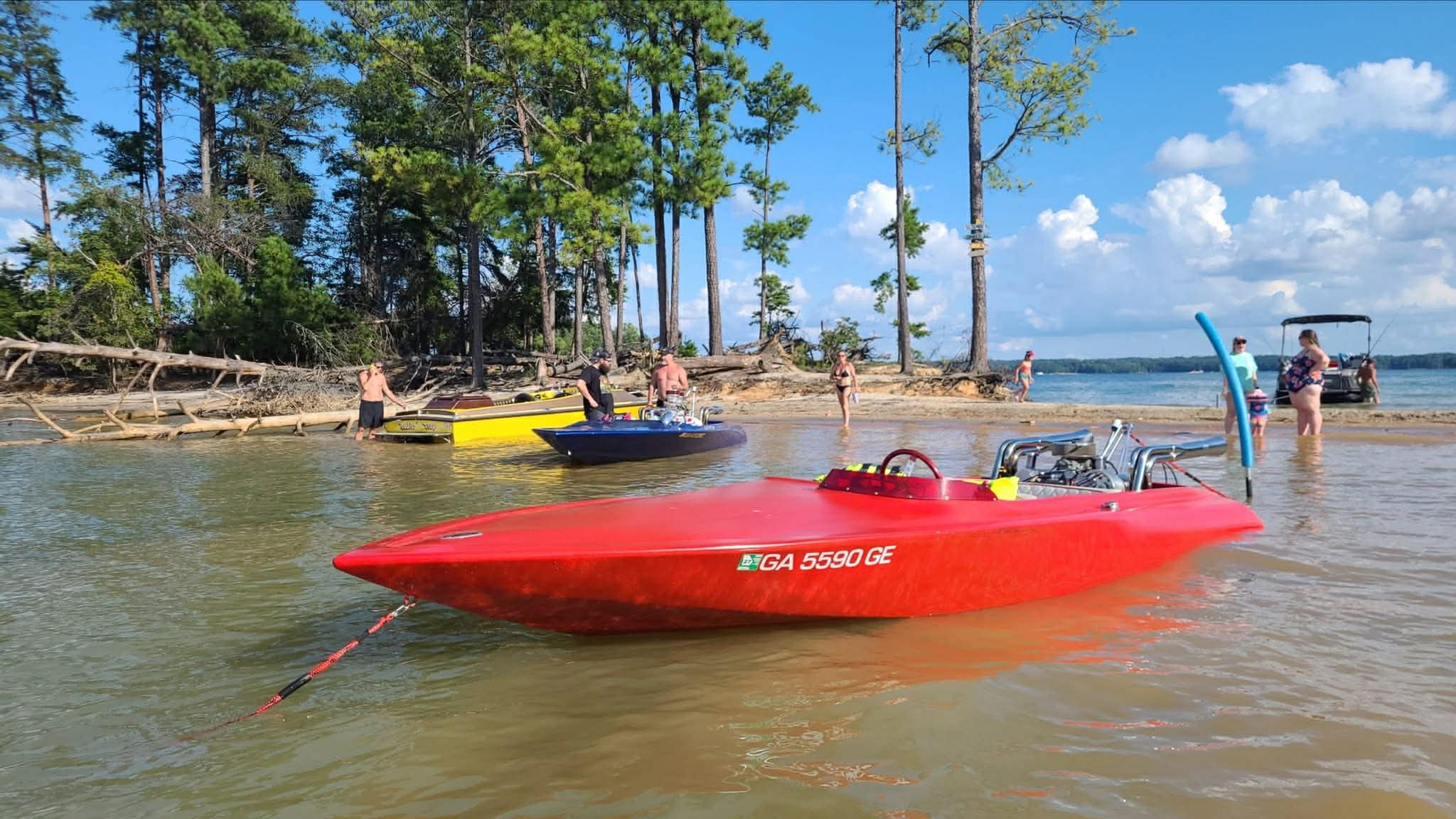

Why We Built a Full Milspec Harness for Our Premier Jet Boat
For our shop 18’ jet boat, there was no question, if we were going to build it properly, the electrical system had to match the performance level of the rest of the platform.
A full custom milspec wiring harness ensures:
- Maximum reliability
- Reduced long-term maintenance
- Cleaner routing and smaller harness diameter
- Professional motorsports grade construction
You can view the full build sheet for the Premier jet boat here.
Conclusion: Don’t Skimp on Marine Electrical Systems
If we’re going to #MakeJetBoatsGreatAgain, we need to build them to the highest standard possible, and the electrical system is no place to cut corners.
A properly engineered milspec wiring harness is ideal for marine applications because it offers:
- Superior moisture resistance
- Reduced corrosion potential
- Improved abrasion resistance
- Higher temperature ratings
- Reduced long-term failure rates
For performance enthusiasts who demand reliability under harsh conditions, milspec harness construction isn’t overkill, it’s the correct solution.
